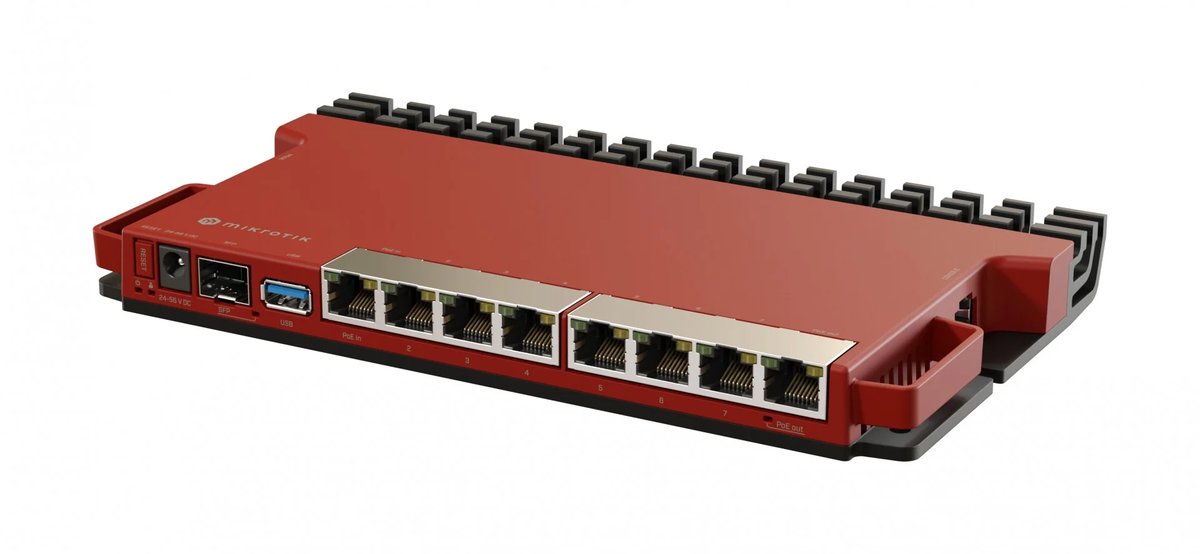

MIKROTIK Router L009UiGS-RM

Product Description

📌 Product Overview

The MikroTik L009UiGS‑RM is a high‑performance rackmount router built for modern business networks, ISPs, and advanced home or branch office deployments. It’s the next‑generation upgrade to the popular RB2011 series, featuring a dual‑core ARM CPU, 8 × Gigabit Ethernet ports, and 1 × 2.5 Gbps SFP port for fast fiber uplinks — all running on MikroTik’s powerful RouterOS v7 platform with a Level 5 license for advanced routing and security.

Designed for efficiency and expandability, the L009UiGS‑RM offers PoE‑in and PoE‑out support, a full‑size USB 3.0 port for modems or storage, and a compact 1U rackmount form factor that fits easily into server racks.

🔧 Key Features

• 8 × Gigabit Ethernet Ports – Reliable wired connectivity for LAN devices
• 1 × 2.5 Gbps SFP Port – High‑speed fiber uplinks or backbone connections
• RouterOS v7 (Level 5 License) – Advanced routing, firewall, VPN, VLAN, and traffic management features
• Dual‑Core ARM IPQ‑5018 CPU (800 MHz) – Significantly faster performance than legacy models like RB2011
• PoE‑in & PoE‑out Support – Power the router via PoE or use PoE‑out to power other devices
• Full‑Size USB 3.0 Port – Connect LTE modems or external storage
• Passive Fanless Cooling – Silent operation and reliable heat dissipation
• Rackmount 1U Design – Includes mounting kit for efficient server rack installation
• Serial Console Port (RJ45) – For direct configuration access
• Wide Operating Temperature Range – Suitable for harsh environments from −40 °C to +70 °C

⚙ Technical Specifications

• Model: MikroTik L009UiGS‑RM
• CPU: Dual‑core ARM IPQ‑5018 @ 800 MHz
• RAM: 512 MB
• Storage: 128 MB NAND
• Operating System: RouterOS v7 (License Level 5)
• Ethernet: 8 × 10/100/1000 Mbps Gigabit RJ45
• SFP: 1 × 2.5 Gbps (backward compatible with 1 Gbps)
• USB: 1 × USB 3.0 Type‑A
• Power: PoE‑in (802.3af/at) or DC jack (24–56 V)
• PoE‑Out: Passive PoE on last port (variable current limits)
• Cooling: Fanless passive design
• Mounting: Rackmount 1U (kit included)
• Operating Temp: −40 °C to +70 °C
• Certifications: CE, EAC, RoHS

🛠 Applications

The MikroTik L009UiGS‑RM is ideal for:

• Edge routing and gateway duties in small and medium enterprise (SME) networks
• ISP customer edge or distribution routers
• Multi‑branch office network aggregation
• Fiber‑to‑Ethernet uplink connections
• PoE‑powered device deployments (IP cameras, VoIP phones, access points)
• Advanced traffic management and security configurations leveraging RouterOS capabilities

🌐 Product Description

Boost your network performance with the MikroTik L009UiGS‑RM Rackmount Router — a powerful, flexible, and scalable solution for business, ISP, and advanced networking environments. With a modern dual‑core ARM CPU, 8 Gigabit ports, 2.5 Gbps SFP connectivity, and full support for RouterOS v7, this router delivers fast and reliable routing, security, and traffic control. The inclusion of PoE‑in/out, USB expansion, and a rackmount form factor makes it a versatile choice for both server rooms and distributed office networks.
