Product Description

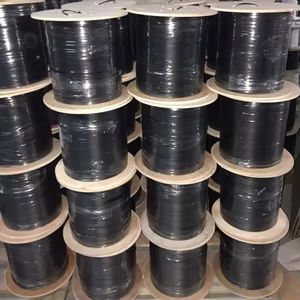

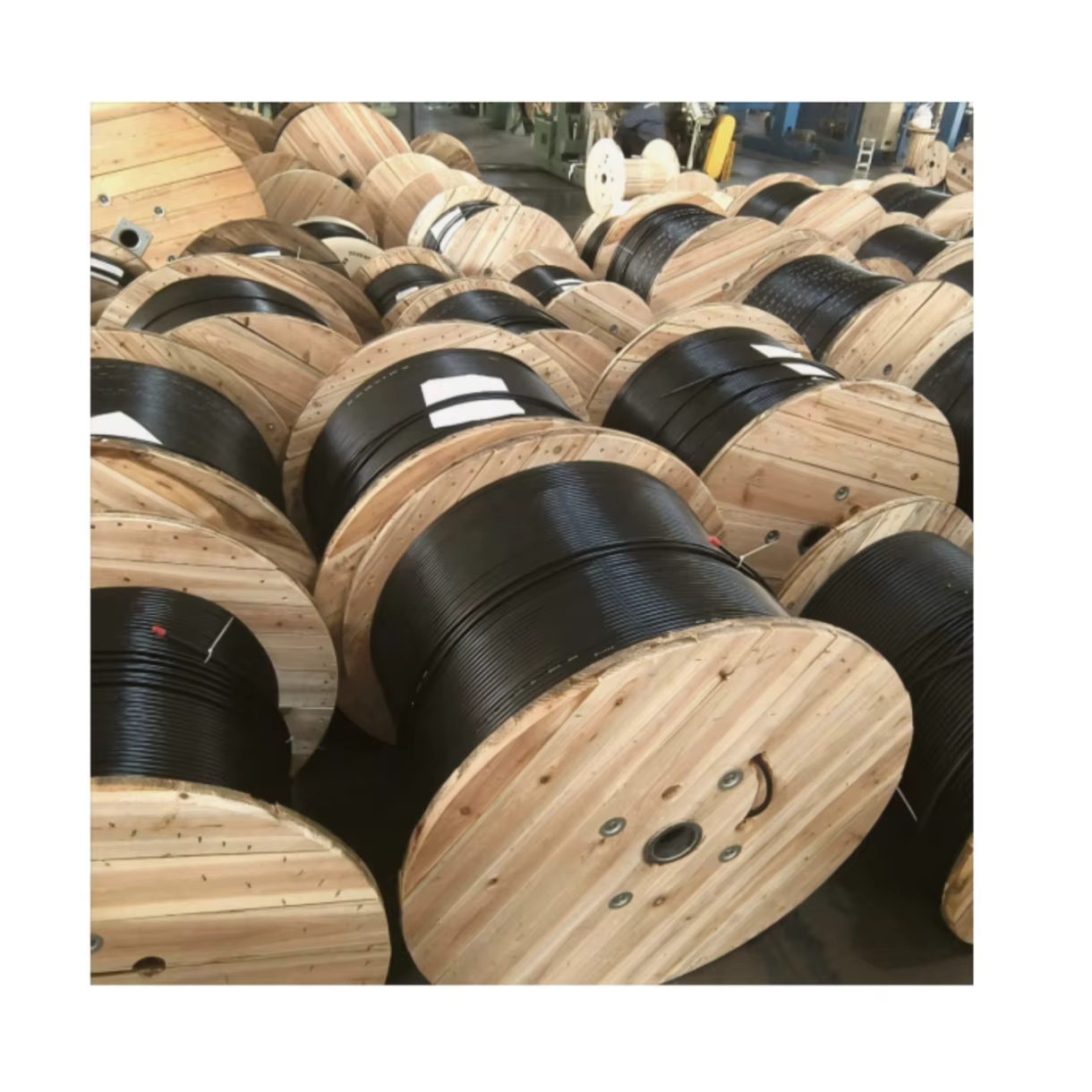

4KM Mini ADSS 12 Core Fiber Optic Cable Roll

The 4KM Mini ADSS 12 Core Fiber Optic Cable Roll is a premium high-capacity outdoor aerial fiber solution engineered for long-distance telecommunications, ISP backbone infrastructure, FTTH deployments, enterprise networking, and high-speed data transmission systems. Designed with advanced All-Dielectric Self-Supporting (ADSS) technology, this cable delivers exceptional durability, stable signal performance, and reliable long-span aerial installation without requiring metallic messenger wires or grounding systems.

Built for demanding outdoor environments, this cable combines 12-core single-mode fiber capacity with a lightweight Mini ADSS structure, allowing efficient high-bandwidth communication while reducing installation complexity and deployment costs. The cable is specifically optimized for overhead pole-to-pole installations where strong tensile strength, weather resistance, and low attenuation are essential.

Its fully dielectric construction eliminates electrical conductivity, making it immune to electromagnetic interference and safe for deployment near high-voltage electrical infrastructure. The outer jacket is manufactured using UV-resistant polyethylene material, while the internal loose tube gel-filled design protects the optical fibers from moisture, mechanical stress, and environmental damage.

The 12-core fiber configuration offers greater scalability and redundancy compared to lower-core cables, making it ideal for expanding broadband networks, supporting multiple transmission channels, and future-proofing growing fiber infrastructures.

🔧 Key Specifications & Features

Product Type: Mini ADSS Fiber Optic Cable
Fiber Count: 12 Core
Cable Length: 4KM Continuous Roll
Fiber Type: Single Mode G.652D
Cable Structure: All-Dielectric Self-Supporting (ADSS)
Installation Method: Aerial / Pole-to-Pole Outdoor Deployment
Outer Jacket Material: UV-Resistant MDPE/PE Sheath
Strength Member: Aramid Yarn (Kevlar Reinforcement)
Cable Design: Loose Tube Gel-Filled Structure
EMI Protection: Fully dielectric non-metallic design
Span Capability: Approx. 80m – 150m aerial spans depending on environmental conditions
Maximum Installation Tension: Up to 1250N
Operating Tension: Approx. 800N
Crush Resistance: 1000N/10cm
Cable Diameter: Approx. 6.3mm – 6.6mm
Minimum Bending Radius:
- Installation: 20D
- Operation: 10D
Operating Temperature: -20°C to +65°C
Weather Resistance: UV, moisture, wind, and rain resistant
Water Protection: Water-blocking gel-filled loose tube
Cable Weight: Approx. 50 ±10 kg/km
Color: Black Outdoor Sheath

⚡ Performance & Real-World Benefits

The 4KM Mini ADSS 12 Core cable is engineered for high-speed optical transmission with extremely low signal attenuation, making it ideal for long-distance broadband and telecom deployments.

Its 12-core structure enables:

Multiple high-capacity transmission channels
Redundant fiber pathways for backup reliability
FTTH and FTTB distribution systems
CCTV and surveillance backbone transmission
ISP backbone expansion projects
Enterprise and campus networking infrastructures

The ADSS self-supporting structure removes the need for metallic support cables, reducing installation costs and simplifying deployment. Its non-metallic design also provides complete immunity against electromagnetic interference and lightning conduction.

The lightweight Mini ADSS structure allows easier transportation and faster installation while still maintaining excellent tensile strength for aerial deployment across long spans.

Its waterproof loose tube and UV-resistant jacket ensure reliable outdoor performance in harsh weather conditions including intense sunlight, heavy rainfall, humidity, and wind exposure.
