Product Description

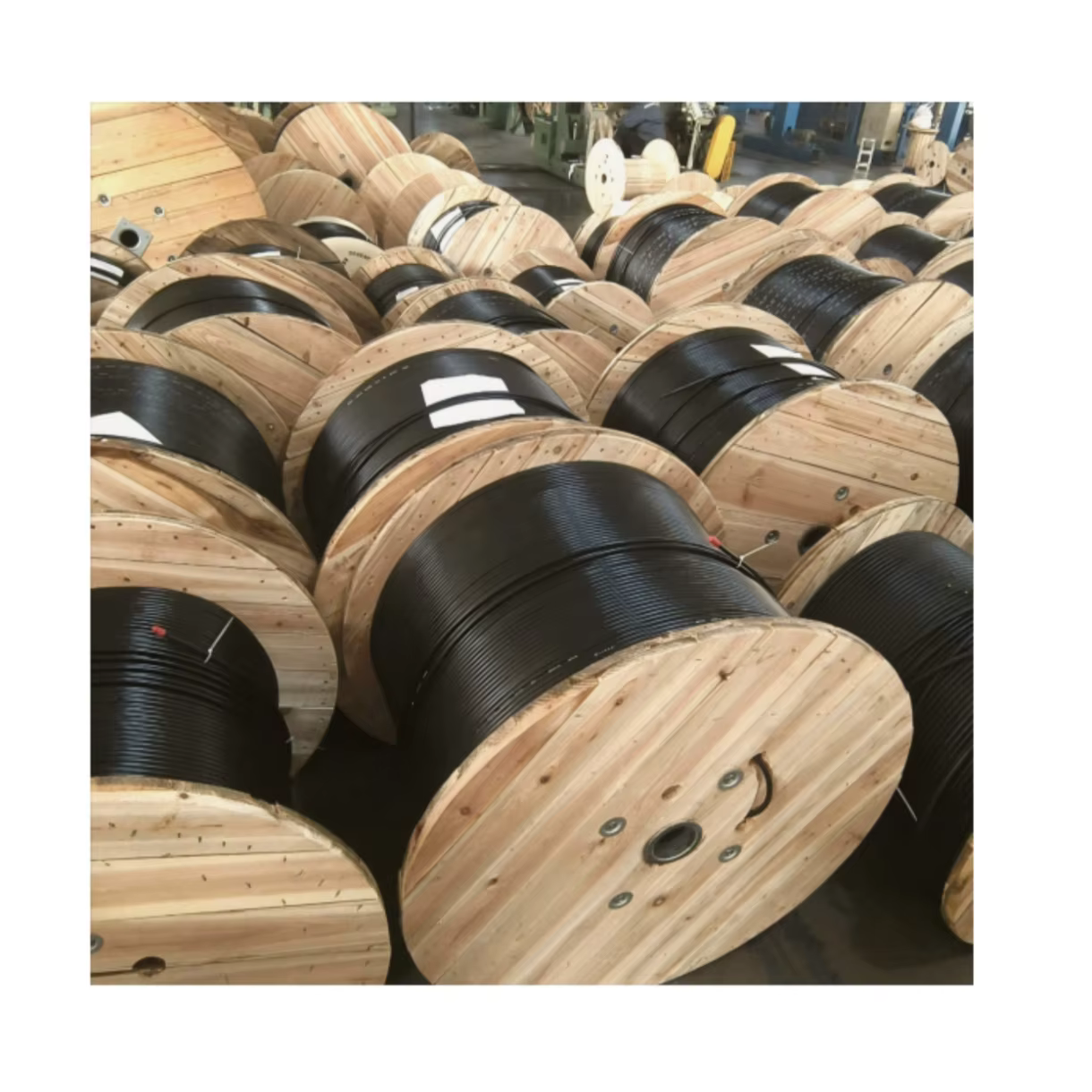

4KM ADSS 24 Core Fiber Optic Cable Roll

The 4KM ADSS 24 Core Fiber Optic Cable Roll is a high-capacity, carrier-grade outdoor fiber optic solution designed for long-distance telecommunications, ISP backbone infrastructure, enterprise networking, FTTH deployments, and broadband expansion projects. Engineered using advanced All-Dielectric Self-Supporting (ADSS) technology, this cable provides superior durability, stable optical performance, and efficient aerial installation without requiring metallic messenger wires or grounding systems.

Designed for demanding outdoor deployments, the cable combines 24-core single-mode fiber technology with a rugged self-supporting structure, enabling high-bandwidth data transmission across long distances while maintaining extremely low signal attenuation. It is ideal for modern telecom infrastructure where scalability, redundancy, and reliability are critical.

The cable features a fully dielectric non-metallic construction, making it immune to electromagnetic interference and safe for deployment near high-voltage electrical lines. Its lightweight yet high-tensile structure allows easy aerial pole-to-pole installation while minimizing deployment costs and maintenance requirements.

The outer jacket is manufactured using UV-resistant polyethylene (PE/HDPE) material, while internally the fibers are protected within gel-filled loose tubes that prevent moisture penetration and environmental damage. Reinforced with aramid yarn (Kevlar) and FRP strength members, the cable offers exceptional tensile strength and weather resistance, ensuring reliable long-term performance in harsh outdoor conditions.

🔧 Key Specifications & Features

Product Type: ADSS Fiber Optic Cable
Fiber Count: 24 Core
Cable Length: 4KM Continuous Roll
Fiber Type: Single Mode G.652D / OS2
Cable Structure: All-Dielectric Self-Supporting (ADSS)
Installation Type: Outdoor Aerial / Pole-to-Pole Deployment
Outer Jacket Material: UV-Resistant PE / HDPE Sheath
Strength Members: Aramid Yarn (Kevlar) + FRP Reinforcement
Cable Design: Loose Tube Gel-Filled Water-Blocking Structure
EMI Protection: Fully dielectric non-metallic construction
Span Capability: Approx. 80m – 150m aerial spans depending on deployment conditions
Outer Diameter: Approx. 8mm – 10mm depending on structure design
Maximum Tensile Strength: Up to 3000N short-term load support
Crush Resistance: Up to 2000N/10cm
Minimum Bending Radius:
- Dynamic: 20D
- Static: 10D
Operating Temperature: -40°C to +70°C
Water Protection: Waterproof gel-filled loose tube design
Weather Resistance: UV, rain, humidity, wind, and temperature resistant
Installation Advantage: Lightweight design for easier handling and faster deployment
Standards Compliance: IEC 60794 / ITU-T G.652D

⚡ Performance & Real-World Benefits

The 4KM ADSS 24 Core cable is engineered for high-capacity fiber communication and long-distance network reliability, making it ideal for telecom operators, ISPs, enterprise backbone systems, and broadband expansion projects.

Its 24-core configuration allows:

Multiple high-speed transmission channels
Network redundancy and backup routing
Large-scale FTTH & FTTB deployments
CCTV and surveillance backbone connectivity
Enterprise and campus interconnection systems
Future-proof network scalability

The self-supporting ADSS structure removes the need for metallic support wires, reducing installation complexity and lowering infrastructure costs. Since the cable is fully dielectric, it does not conduct electricity and is resistant to electromagnetic interference, making it safe for installation near electrical infrastructure.

Its aramid yarn reinforcement provides strong tensile performance for long aerial spans, while the gel-filled loose tube structure protects the fibers from moisture and environmental stress.

The rugged UV-resistant outer jacket ensures long-term outdoor durability even under intense sunlight, heavy rainfall, strong winds, and fluctuating temperatures.
